Product Description:

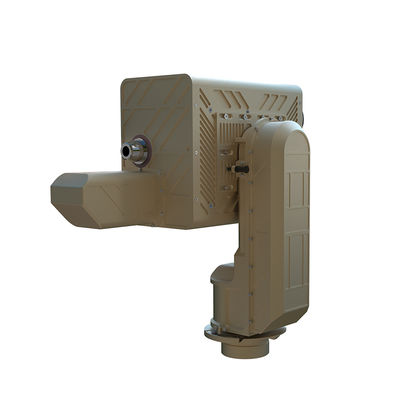

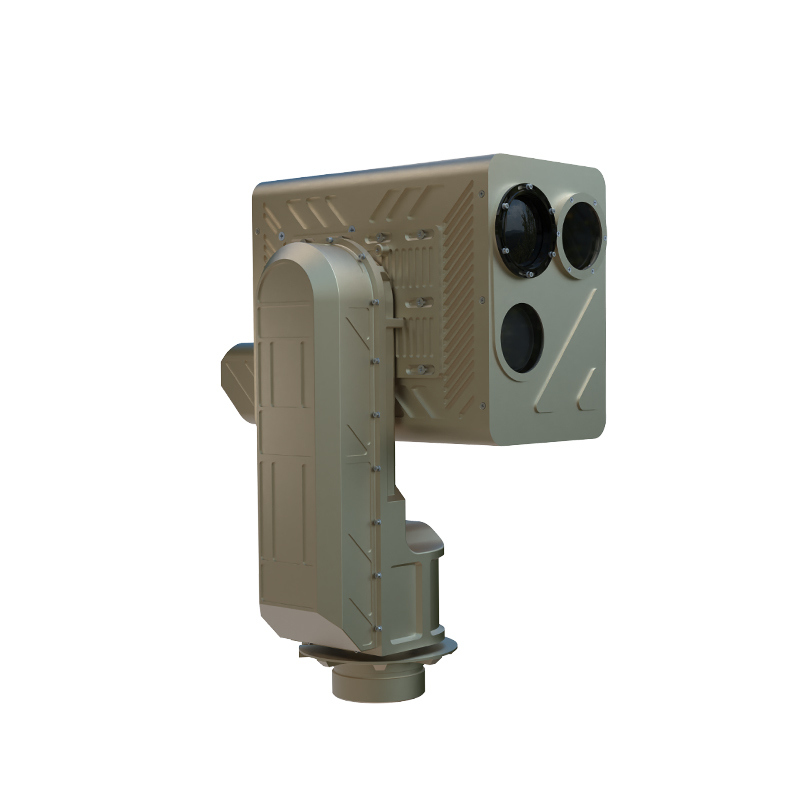

The lightweight laser jamming interception system is mainly aimed at small drone targets, completing the physical interception of threat targets in the protected airspace, and the optoelectronic jamming to prevent small drones from conducting reconnaissance and "suicide" attacks. It adopts a miniaturized and modular design approach, which can be quickly moved, deployed and set up for use.
Technical Parameters:
| |
Model |
HP-RJH2000 |
| Tracking system |
Laser power |
≥2000W |
| Maximum treatment time |
200s/battery powered (10-15 seconds working, 30-60 seconds resting) |
| Treatment range |
50m~300m(DJI Phantom 4) |
| Tracking accuracy |
≤25urad |
| Visible light tracking |
Sensor |
1'' progressive scan CMOS |
| Resolution |
2048 × 2048 |
| Sensor size |
11.26 mm × 11.26 mm |
| Pixel size |
5.5 μm × 5.5 μm |
| Focal length |
500mm |
| Field of view |
0.3°× 0.3° |
| Thermal imaging tracking |
Detector type |
uncooled Vox |
| Pixel size |
12μm |
| Resolution |
640 × 512 |
| Spectral range |
8～14μm |
| NETD |
≤40mK@F1.0,300K |
| Focal length |
60mm |
| Field of view |
7.3°× 5.5° |
| Spatial resolution |
0.2mrad |
| Digital zoom |
1×/2×/3×/4× |
| False color |
White hot/Black hot/Rainbow/Iron red/Lava/Sky/Purple orange/Gradual red/Gradual green/Gradual blue |
| Image processing |
Non-uniformity correction/digital filtering noise reduction/digital detail enhancement |
| LRF |
Wavelength |
1535nm |
| Light source type |
Diode pump |
| Distance measurement capability |
≥500m(DJI Phantom 4);
≥5000m
|
| Distance measurement accuracy |
±1m |
| Operating frequency |
1Hz/5Hz/10Hz |
| Accuracy rate |
98% |
| laser illuminator |
Wavelength |
808 ± 5nm |
| Laser power |
11 ± 1W |
| Illumination angle |
1°～65° |
| Laser control |
Automatic/Manual |
| Illumination distance |
≥1500m |
| PTZ |
Horizontal speed |
0.01°～50°/s |
| Horizontal Angle |
-170°～+170° |
| Vertical Angle |
-20°～+80° |
| Tracking accuracy |
≤0.5mrad |
| |
Communication interface |
1×RS422/1×CAN/1×RJ45 |
| Power interface |
DC20V～DC40V |
| Protection level |
IP65 |
| Operating temperature |
-20℃～+50℃ |
| Storage temperature |
-25℃～+55℃ |
| Power consumption |
≤400W |
| Dimensions |
＜500mm × 400mm × 550mm |
| Weight |
≤17Kg |
| Laser dimensions |
＜500mm × 360mm × 280mm |
| Laser weight (including battery) |
≤17Kg |
Company:
Hope Wish Photoelectronics Technology Co., Ltd. was established in Jinan high tech Zone and has a core R&D team for laser imaging, infrared thermal imaging detection and tracking technology research and product. Hope-Wish focuses on the research and development of night vision and multispectral imaging technology, by using a variety of image analysis and processing technology based on artificial intelligence to provide users with comprehensive optoelectronic system solutions in long-distance, high-definition, intelligent, multi-purpose, all-weather and complex environments.
Hope-Wish solutions cover the border/coastal defense, anti UAV, intelligent transportation, forest fire prevention, environmental protection, individual photoelectric equipment (handheld, helmet, gun aiming), marine and other industries. The products developed by the Hope-Wish, with their excellent performance, reliable quality and thoughtful after-sales service has been widely praised by users all over the world.Support and Services:
The Anti Drone System product comes with comprehensive Product Technical Support and Services to ensure optimal performance and customer satisfaction. Our team of experts is available to provide assistance with installation, configuration, troubleshooting, and maintenance of the system. We offer regular software updates and firmware upgrades to enhance the system's capabilities and address any potential security threats.
FAQ:
Q: What is the brand of this Anti Drone System product?
A: The brand name of this product is Hope-Wish.
Q: What is the model number of this Anti Drone System product?
A: The model number of this product is HP- [insert specific model number here].
Q: Where is this Anti Drone System product manufactured?
A: This product is manufactured in China.
Q: Does the Anti Drone System product come with a warranty?
A: For warranty information, please refer to the product documentation or contact our customer support.
Q: How does the Anti Drone System work to protect against unauthorized drones?
A: The Anti Drone System utilizes [insert relevant technology here] to detect and counter unauthorized drone activity, providing protection against potential threats.
